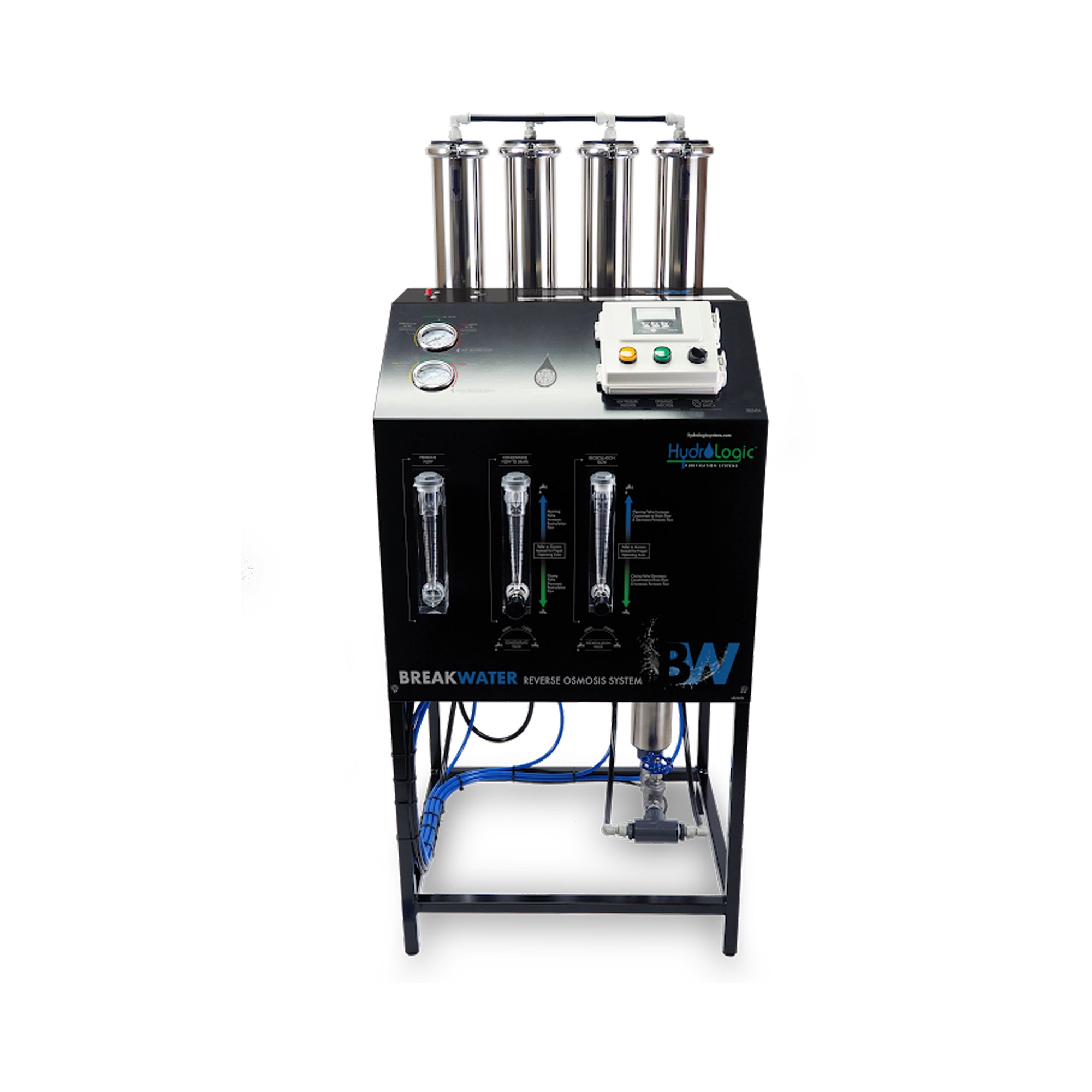

Breakwater™ Reverse Osmosis System

• Overview
• Specifications
• Resources

• An affordable solution with outstanding RO performance!

  The HydroLogic Breakwater RO Series- Affordable, DIY install systems, with customizable pre-filtration options to meet your water quality needs. Our high-volume commercial RO systems are designed to deliver up to 98% TDS rejection from your microbiologically safe, municipal water source at volumes ranging from 5,600 to 16,800 GPD. User adjustable controls, digital controller and comprehensive operation guides round out this versatile purification system.

  When properly sizing your RO system, knowing your nominal incoming water temperature is important. RO membranes are performance tested and rated based on a constant operating water temperature of 77deg F (25deg C). As incoming water temperatures decline, the water becomes more viscous thus requiring more energy, in the form of water pressure, to perform RO functionality. Reference the chart(s) below to appropriately size your RO to meet your expected daily water production demands.

  Complete your system build with optional Carbon Media pre-filtration, AntiScalant Injection and Sediment Bag pre-filtration. Designed for those on city or well water with elevated hardness and/or high TDS.

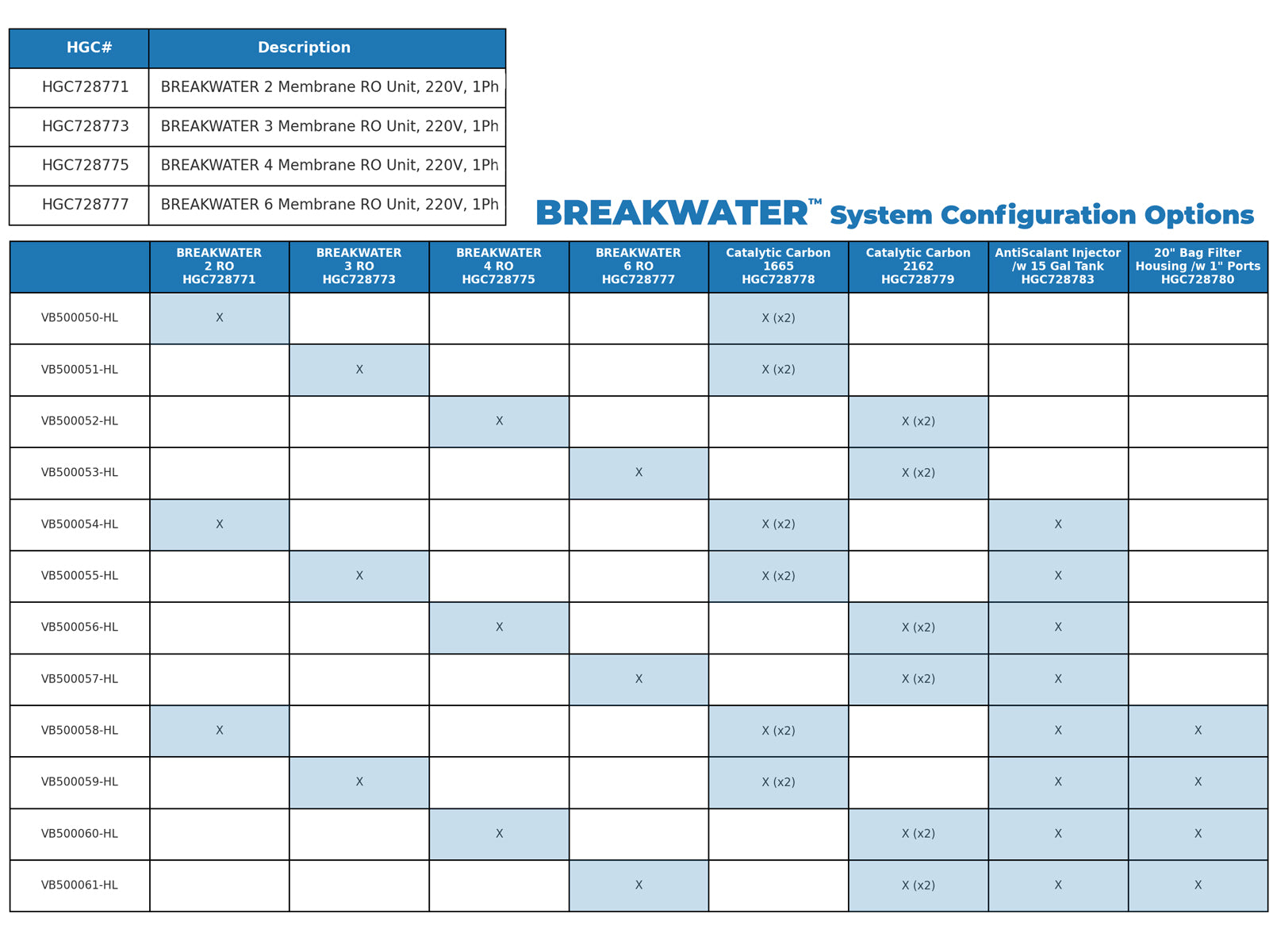

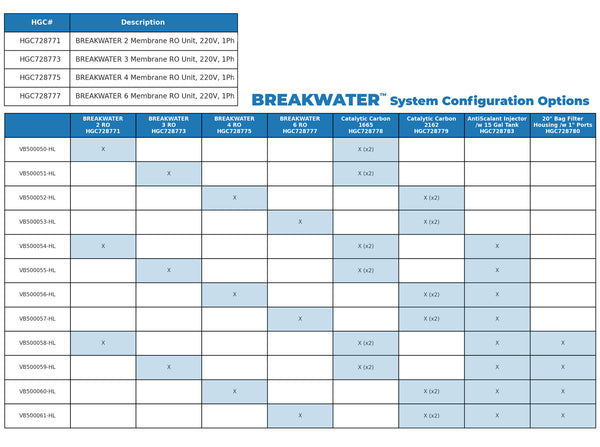

  Description	*RO Alone	W/Catalytic Carbon	W/Cat & Antiscalant	W/Cat & Antiscalant & Bag Filter
  Hyperlogic Fighter Series: 5.6K gal/day	HGC728771	VB500050-HL	VB500054-HL	VB500058-HL
  Hyperlogic Fighter Series: 8.4K gal/day	HGC728773	VB500051-HL	VB500055-HL	VB500059-HL
  Hyperlogic Fighter Series: 11.2K gal/day	HGC728775	VB500052-HL	VB500056-HL	VB500060-HL
  Hyperlogic Fighter Series: 16.8K gal/day	HGC728777	VB500053-HL	VB500057-HL	VB500061-HL

• Filters & Replacement Schedules

  • RO Sediment Filter
    Replace monthly
  • RO Membrane Element
    Replace annually
  • Carbon Pre-Filtration
    Re-bed media annually
  • AntiScalant Solution Mixture (if option equipped)
    Rebatch monthly
  • 20" Bag Filter Element (if option equipped)
    Rebatch monthly
