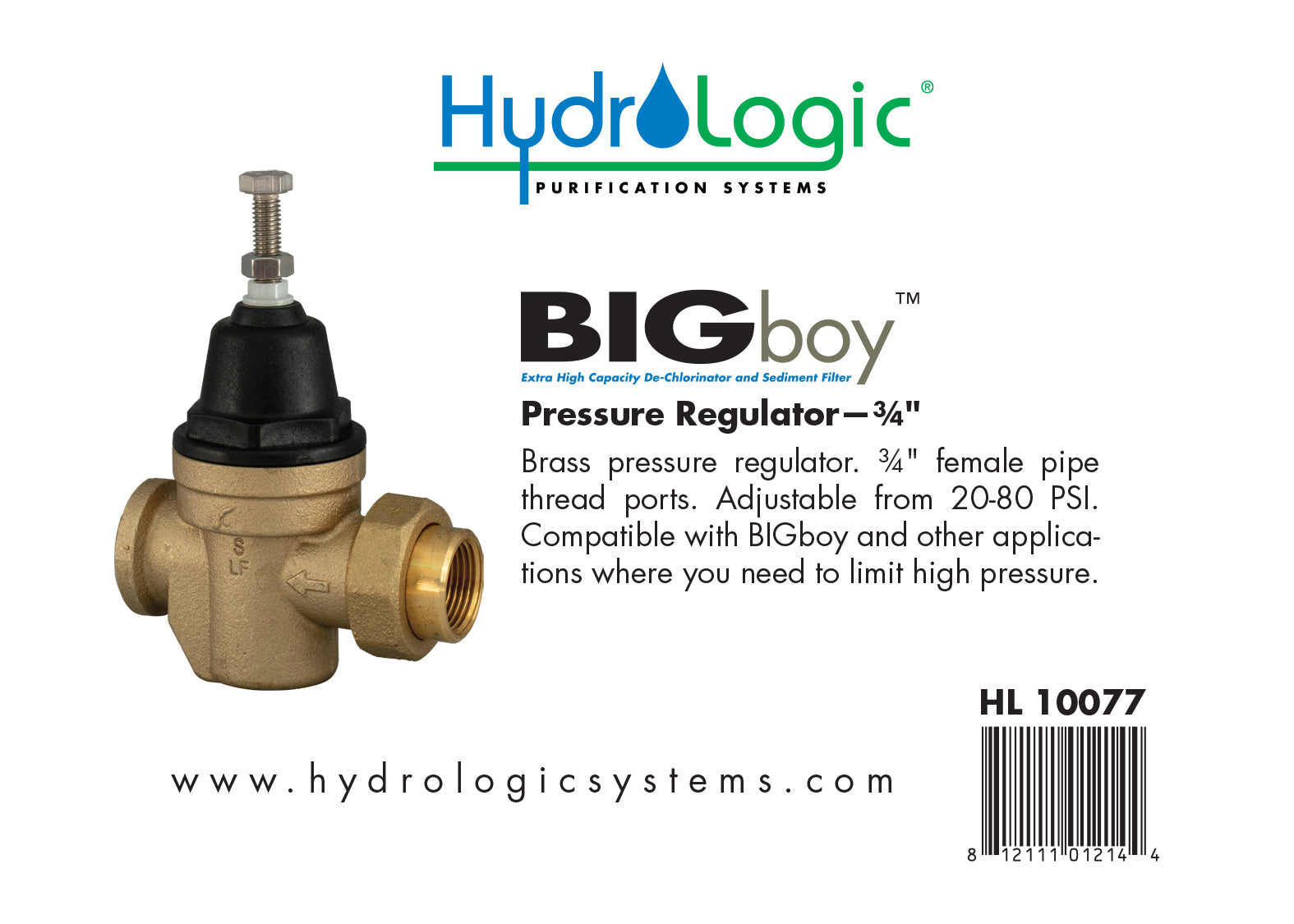

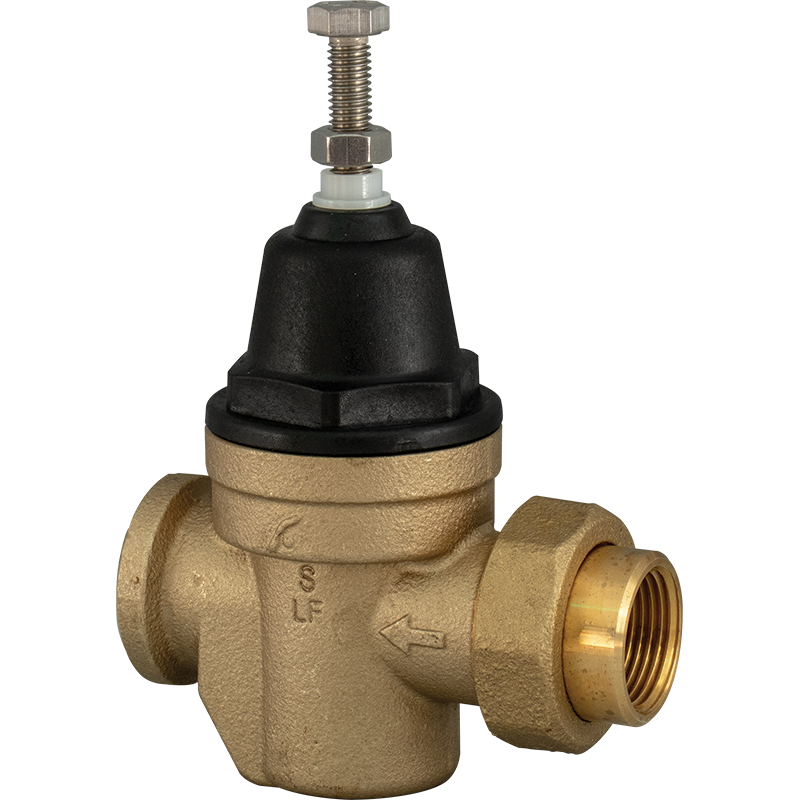

BIGboy™ Pressure Regulator—¾" FNPT

  • Use the HydroLogic brass pressure regulator with ¾" Female Pipe Thread x ¾" Male National Pipe Thread to adjust your pressure between 20-80 psi. 400 psi maximum inlet pressure. 22 GPM maximum inlet flow rate. Compatible with BIGboy™ or any other systems with ¾" inlet fittings and other applications where you need to limit high pressure.
    • Dimensions (H x W x D): 5.625" x 4" x 1.75"
    • Weight: 1.755 lbs
    • Tariff: 3917400000
  • BIGboy™ Pressure Regulator—¾" FNPT Downloads

    Print
    Web

Part Number: HL 10077
MSRP: $ 153.95
UPC: 812111012144
